3ds Max煙霧效果——濃煙霧

大家好！ 在這里，我有一個創建濃煙霧效果的教程，可以用于像油或爆炸煙霧，火山噴發，森林火災等等。 你可能已經在互聯網或電視，或有時在你的現實生活中看到這種煙霧，但它并不是每次都發生。

Hello everyone! Here I've got a tutorial for creating a thick smoke effect, which can be used for such things as oil or explosion smoke, a volcanic eruption, a forest fire, and so on. You may have seen this kind of smoke on the internet or on television, or sometimes in your real life, but it doesn't happen every time.

There are number of software packages and plugins with which you can create fire and smoke effects, such as FumeFX and Phoenix FD for 3ds Max and Maya, Houdini, Cinema 4D and so on, but many big VFX and animation studios use FumeFX in their pipeline as it's well-established, trustworthy and most importantly user-friendly. There are different techniques you can use to make this effect in FumeFX, such as Simple Source, Object Source and Particle Source, but we are going to use Object Source.

有許多軟件包和插件，您可以使用它們創建火和煙的效果，如用于3ds Max和Maya，Houdini，Cinema 4D等的FumeFX和Phoenix FD，但是許多大VFX和動畫工作室在他們的管道中使用FumeFX因?yàn)樗�已�?jīng)建立，值得信賴，最重要的是人性化。有一些不同的技術可以用來在FumeFX中產生這種效果，例如Simple Source，Object Source和Particle Source，但是我們要使用Object Source。

Before you start working on this kind of effect, it helps to have good knowledge of fire and smoke properties, such as Turbulence, Velocity and Buoyancy. There are different types of smoke, from thin smoke for incense and cigarettes, to thick oil smoke or explosion smoke, and each one has different properties.

在開始處理這種效果之前，它有助于了解火災和煙霧屬性，例如湍流，速度和浮力。有不同類型的煙，從薄香煙和香煙，到厚油煙或爆炸煙，每個都有不同的性質。

I can't teach you each and every parameter of this plugin and software, as they're very vast and need a lot of time to go through, but this particular tutorial will cover as much as required to create this thick smoke effect. This is very interesting subject, because you can't define one certain process to create this effect. As much as you will use your creativity and tools available, you will find different types of effects every time. So it very much depends on your own understanding of how to use the tools and techniques.

我不能教你這個插件和軟件的每一個參數，因?yàn)樗鼈兎浅｝嫶螅�需要很多時間，但這個特定的教程將涵蓋創建這種濃煙霧效果所需的多少。這是非常有趣的話題，因?yàn)槟悴荒芏�義一個特定的過程來創建這個效果。盡可能使用你的創造力和工具，你會發現不同類型的效果。所以它非常取決于你自己對如何使用工具和技術的理解。

Step 01: Create an object
步驟01：創建一個對象

Open 3ds Max. Before we start working on our scene, remember that we are going to use the Object Source technique in FumeFX. This means we are going to use an object to emit smoke, so for that purpose we'll start by creating an object. We'll use a Plane.

打開3ds Max。 在我們開始工作之前，請記住我們將在FumeFX中使用對象源技術。 這意味著我們將使用一個對象來發射煙霧，所以為了這個目的，我們將從創建一個對象開始。 我們將使用平面。

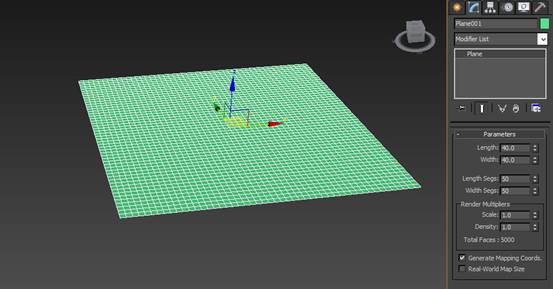

Go to the Create panel and select Geometry > Standard Primitives > Plane. Now change the parameters to the following: Length: 40, Width: 40, Length Segments: 50, and Width Segments: 50. Set the Position to X: 90, Y: 00 and Z: 15.

轉到創建面板，選擇幾何>標準基元>平面。 現在將參數更改為以下參數：長度：40，寬度：40，長度段：50，寬度段：50.將位置設置為X：90，Y：00和Z：15。

Step 02: Modify the object

After creating the Plane, it's time to modify it by adding a Noise Modifier. Select the Plane, go to the Modify panel and select Noise Modifier. Now make the following changes: Scale: 3.0, Strength X: 12.5, Y: 12.5 and Z: 25. Now go to the Animation section and turn on Animate Noise, then set the Frequency to 3.0. Now you can see the Plane with animated noise applied, and you're ready to use it as fire and smoke emitter.

步驟02：修改對象

創建平面后，是時候通過添加一個噪聲修改器來修改它。 選擇平面，轉到修改面板，選擇噪聲修正器。 現在進行以下更改：縮放：3.0，強度X：12.5，Y：12.5和Z：25.現在轉到動畫部分，打開Animate Noise，然后將Frequency設置為3.0。 現在你可以看到平面的動畫噪聲應用，你準備使用它作為火和煙霧發射器。

Step 03: Create a FumeFX Object Source

After finishing the modeling and modification of our object, it's time to proceed to the FumeFX plugin. So first of all we will create the FumeFX Object Source where we will add our Object. To create a FumeFX Object Source, go to Create Panel > Helpers > FumeFX > Object Src. Click on this button and drag it into the viewport. Now go to the Modify panel to make some changes in the Parameters. Change the Object Src Type to Solid. Set the Smoke to 25.0, then go to the Velocity section and set Object's to 5.0 and Extra to 15.0. Keep the other parameters as they are.

步驟03：創建FumeFX對象源

完成我們的對象的建模和修改后，是時候進入FumeFX插件。 所以首先我們將創建FumeFX對象源，我們將添加我們的對象。 要?jiǎng)?chuàng)建FumeFX對象源，請轉到創建面板>幫助程序> FumeFX>對象Src。 單擊此按鈕并將其拖動到視口中。 現在轉到“修改”面板，對參數進行一些更改。 將對象類型更改為實體。 將Smoke設置為25.0，然后轉到Velocity部分，將Object設置為5.0和Extra為15.0。 保持其他參數不變。

Step 04: Create a FumeFX Container

We are going to use FumeFX as it's very simple to use, but still has many options and parameters. We'll cover as much as is required for this particular tutorial.

So let's start with the FumeFX Container. Go to the Create panel and select Geometry > FumeFX > FumeFX. Click on the FumeFX button and drag it into the viewport, then go to the Modify panel and set the Size and Spacing as follows. Width: 400, Length: 400, Height: 600 and Spacing: 1.2.

Now set the Position of FumeFX to the following: X: 00, Y: 00, Z: 00.

步驟04：創建FumeFX容器

我們將使用FumeFX，因?yàn)樗?span style="color: rgb(0, 0, 0); font-family: 微軟雅黑, 宋體; font-size: 14px; font-style: normal; font-variant: normal; font-weight: normal; letter-spacing: normal; line-height: normal; orphans: auto; text-align: start; text-indent: 20px; text-transform: none; white-space: normal; widows: 1; word-spacing: 0px; -webkit-text-stroke-width: 0px; display: inline !important; float: none; background-color: rgb(255, 255, 255);">使用很簡單，但仍然有很多選項和參數。 我們將覆蓋這個特定教程所需的。

所以讓我們從FumeFX容器開始。 轉到創建面板，選擇幾何> FumeFX> FumeFX。 單擊FumeFX按鈕并將其拖動到視口中，然后轉到“修改”面板，并按如下所示設置大小和間距。 寬度：400，長度：400，高度：600和間距：1.2。

現在將FumeFX的位置設置為以下：X：00，Y：00，Z：00。

Step 05: Create a Wind Force

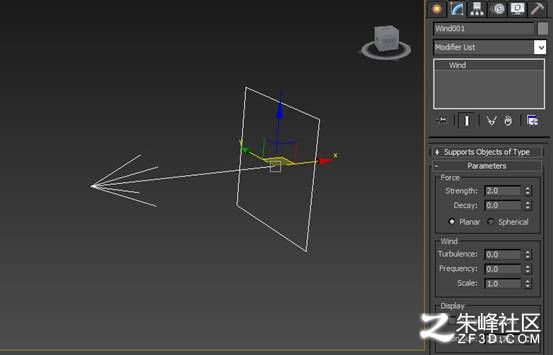

To push the fire and smoke in a certain direction, we'll use Wind. To create this, go to the Create panel and select Space Warps > Forces > Wind. Click on it and drag it into the viewport, then change the Strength to 2.0.

Now set the Position of FumeFX to X: 250, Y: 00, Z: 150. Set the Rotation X: 0.0, Y: -90, Z: 0.0.

步驟05：創建風力

為了推動火和煙在一定方向，我們將使用風。 要?jiǎng)?chuàng)建它，請轉到創建面板，選擇空間扭曲>力>風。 單擊它并將其拖動到視口中，然后將“強度”更改為2.0。

現在將FumeFX的位置設置為X：250，Y：00，Z：150.設置旋轉X：0.0，Y：-90，Z：0.0。

Step 06: Modify the FumeFX Container

After setting up the FumeFX Container, it's time to modify the parameters. So select the Container and go to the Modify panel. Now click on the 'Open FumeFX' UI button and a new window will appear. As you can see, there are six sections in this FumeFX interface and we will modify them one by one. So let's start with the Obj/Src section. In this section you just have to add the FumeFX Object Source which we generated earlier. So go to the Obj/Src section and click on the Pick Object button, then select the FumeFX Object Source and Wind Force.

步驟06：修改FumeFX容器

設置FumeFX容器后，即可修改參數。 因此，選擇容器并轉到“修改”面板。 現在點擊“打開FumeFX”UI按鈕，將出現一個新窗口。 如你所見，在這個FumeFX接口中有六個部分，我們將逐一修改它們。 所以讓我們從Obj / Src部分開始。 在這一節中，你只需要添加我們之前生成的FumeFX對象源。 因此，轉到Obj / Src部分，單擊選擇對象按鈕，然后選擇FumeFX對象源和風力。

Step 07: FumeFX - General Parameters

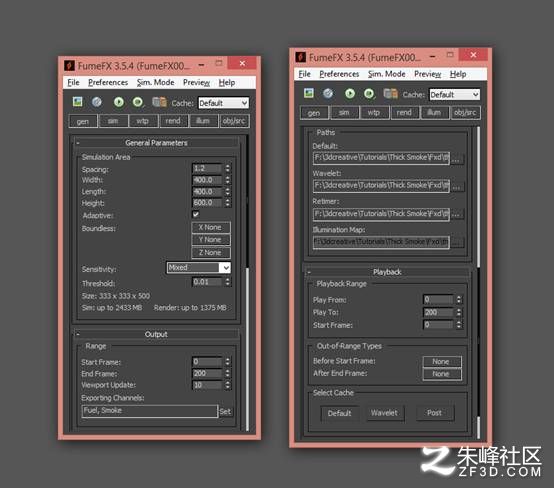

After finishing the setup of the Obj/Src section, let's set up the General Parameters section. We have already the set General Parameters to Spacing: 1.2, Width: 400, Length: 400 and Height: 600. Now we'll move ahead to the Output Range, set the Start Frame: 0, End Frame: 200, then go to Paths, where we set the FXD Files (Cache Files) path. So click on the button which is next to the Default Path and set the path as per your Folder Structure. Now move ahead to the Playback Range and set the Play From as 0 and Play To as 200. So these are some simple modifications in the General Section.

步驟07：FumeFX-一般參數

完成Obj / Src部分的設置后，讓我們?cè)O(shè)置常規參數部分。 我們已經設置了間距的常規參數：1.2，寬度：400，長度：400和高度：600。現在我們繼續前進到輸出范圍，設置開始幀：0，結束幀：200，然后轉到 路徑，我們?cè)谄渲性O(shè)置FXD文件（緩存文件）路徑。 因此，單擊默認路徑旁邊的按鈕，并根據您的文件夾結構設置路徑。 現在向前移動到播放范圍，并將播放從0和播放到200.因此這些是在一般部分的一些簡單的修改。

Step 08: FumeFX - Simulation Parameters

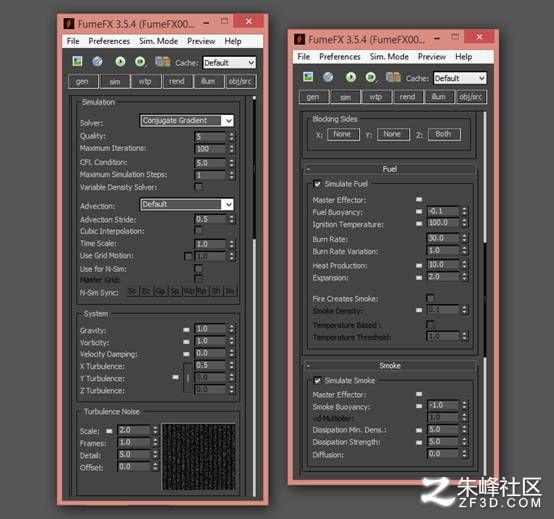

After finishing the setup of General Parameters, let's modify the Simulation Parameters. Go to the Simulation tab and apply the following settings. Change the Vorticity to 1.0 and the X Turbulence to 0.5. Now go to Turbulence Noise and set the Scale to 2.0, Frames to 1.0, and Details to 5.0.

Now go to Fuel and increase the Expansion to 2.0, keeping the other parameters as they are. Then go to Smoke and set the 'Dissipation Min. Dens.' to 5.0 and Dissipation Strength to 5.0 to dissipate the smoke fast. Keep the other parameters as they are and hit the Simulation button. It will take around 3-4 hours to finish.

步驟08：FumeFX-模擬參數

完成一般參數設置后，讓我們修改模擬參數。 轉到模擬選項卡并應用以下設置。 將渦度變?yōu)?.0，X湍流變?yōu)?.5。 現在去湍流噪聲和設置縮放2.0，幀到1.0，細節到5.0。

現在去Fuel并將Expansion增加到2.0，保持其他參數不變。 然后去Smoke并設置'Dissipation Min。 Dens。 到5.0和耗散強度到5.0，以快速消散煙霧。 保持其他參數，并按下模擬按鈕。 這將需要約3-4小時完成。

Step 09: FumeFX - Rendering Parameters

After finishing the simulation, just make sure that everything is as per your requirements. Now it's time to set the colors of the fire and smoke. So go to Rendering section and select the Fire tab. Right-click on Color and change it to Key Mode, then change the Gradient Color as shown in the image. Now move on to the Smoke Parameters. Set the smoke color to gray and reduce the Opacity to 0.5, then turn on the Cast Shadows and Receive Shadows options (so when we add the light, we should see the smoke's shadow).

步驟09：FumeFX - 渲染參數

完成模擬后，只要確保一切都符合您的要求。 現在是時候設置火和煙的顏色。 因此，轉到渲染部分，選擇Fire選項卡。 右鍵單擊顏色并將其更改為鍵盤模式，然后更改漸變顏色，如圖所示。 現在轉到煙霧參數。 將煙的顏色設置為灰色，并將不透明度降低到0.5，然后打開投射陰影和接收陰影選項（因此，當我們添加光時，我們應該看到煙的陰影）。

Step 10: FumeFX - Illumination Parameters

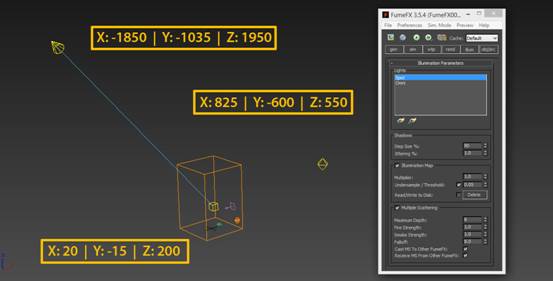

After finishing the Color settings, it's time to add light to the scene. We'll create two lights: one Target Spot and one Omni Light. To do that, go to the Create panel and select Lights > Standard > Target Spot. Click on the Target Spot light and create it in viewport. Now set the light position to X: -1850, Y: -1035, Z: 1950, and its Target Position to X: 20.0, Y: -15.0, Z: 200.0. Create the Omni Light with same procedure and change its Position to X: 825, Y: -600, Z: 550.

Now select the lights and go to Modify panel, then turn on the Shadow and set it to Ray Traced Shadows. Now go to Shadow Parameters and turn on Atmosphere Shadows. After finishing these settings, return to FumeFX Container. Go to the Illumination section and add these lights into the Light section by clicking the Pick Light button. Now turn on Multiple Scattering, set its Max Depth to 8 and Falloff to 8.0, and leave the other parameters as they are.

步驟10：FumeFX-照明參數

完成顏色設置后，是時候給場景添加光。 我們將創建兩個燈：一個目標點和一個全向燈。 為此，請轉到創建面板，然后選擇燈光>標準>目標點。 單擊目標點亮并在視口中創建它。 現在將光位置設置為X：-1850，Y：-1035，Z：1950，其目標位置設置為X：20.0，Y：-15.0，Z：200.0。 使用相同的步驟創建Omni Light，并將其位置更改為X：825，Y：-600，Z：550。

現在選擇燈光并轉到“修改”面板，然后打開陰影并將其設置為“光線跟蹤陰影”。 現在轉到陰影參數，打開大氣陰影。 完成這些設置后，返回FumeFX Container。 轉到照明部分，并通過單擊選擇燈按鈕將這些燈添加到燈部分。 現在打開多重散射，將其最大深度設置為8，將衰減設置為8.0，并保留其他參數。

Step 11: Rendering

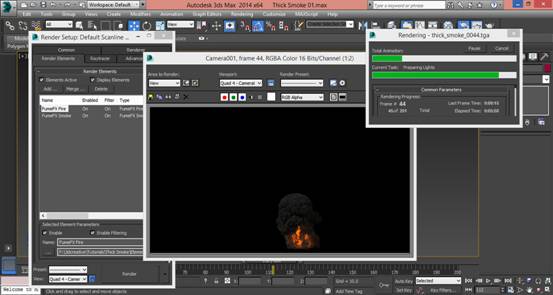

After finishing the light setup, it's time for rendering. Go to Render Setup by pressing F10 and set your desired Output Range, Output Resolution and Output Path. Go to the Render Elements tab and click on the Add button, bringing up a new window. Select the FumeFX Fire and FumeFX Smoke elements and click OK. Now just hit the Render button. It will take around 4-5 hours to finish rendering.

步驟11：渲染

完成燈光設置后，它的時間來渲染。 按F10進入渲染設置，設置所需的輸出范圍，輸出分辨率和輸出路徑。 轉到渲染元素選項卡，單擊添加按鈕，打開一個新窗口。 選擇FumeFX Fire和FumeFX Smoke元素，然后單擊確定。 現在只需點擊渲染按鈕。 完成渲染需要4-5個小時。

Step 12: Post-production

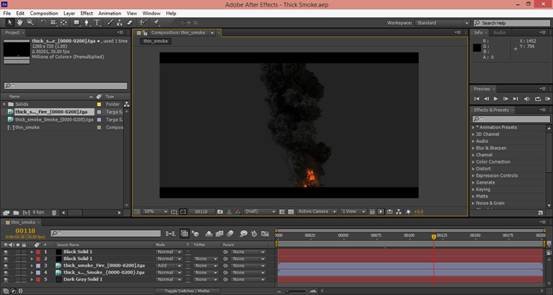

After finishing the rendering, import both the fire and smoke renders into After Effects, or any other compositing software which is convenient for you. I'm using After Effects, so import both elements and drag them into the timeline. Select the fire element, then right-click and change its Blending Mode to Add. You can include Glow effects and make some changes in the Parameters. Select the smoke element and make whatever changes you like to the color or brightness settings. Now render the final output and you'll get your finished thick smoke!

步驟12：后期制作

完成渲染后，將Fire和Smoke渲染導入After Effects或任何其他對您方便的合成軟件。 我使用After Effects，所以導入兩個元素，并將它們拖動到時間軸。 選擇fire元素，然后右鍵單擊并將其混合模式更改為添加。 您可以包括輝光效果，并在參數中進行一些更改。 選擇煙霧元素，并對顏色或亮度設置進行任何您喜歡的更改。 現在渲染最終的輸出，你會得到你的完成濃煙！
