摩天大樓的制作

在本教程中，我將解釋我的工作流程，并顯示我創建此映像的主要步驟， 從思想階段到3D設置，直到后期處理。

首先，讓我談?wù)勥@個項目的背景。 我不得不說，我的新興趣是創造科幻場景，并在每當有空閑時間觀看VFX故障。 這個想法來自新的“星際迷航”電影。 電影中的場景特別靈感，這顯示了USS企業級飛船撞向市中心。 我發現場面驚人，所以我決定創建一個帶有摩天大樓的小景觀，充滿活力。

In this tutorial, I will explain my workflow and show the main steps I took in creating this image ? from the idea phase to the 3D setup and on through to post-processing.

First, let me say a few words about the background of this project. I have to say that my new hobby is to create sci-fi scenes and watch VFX breakdowns whenever I get some spare time. This idea came from the new Star Trek movie. I was particularly inspired by the scenes in the film which showed the USS Enterprise starship crashing into the city center. I found that scene amazing, so I decided to create a small scene featuring skyscrapers but imbued with action.

References and lighting

If I make an arch-viz image or any personal work, I never start without reference photos. I think this is a really important part of any project because it helps you to setup and direct the lighting, and also provides a good pallet reference when applying the final tweaks.

Generally, from the beginning I have an image in my head about a certain camera angle and mood, but of course this does not mean that I won't do any experimentation during the remainder of the process!

In this case, I knew that I wanted to create an aerial shot and I had a certain mood in my mind, so I just started scanning through photos online.

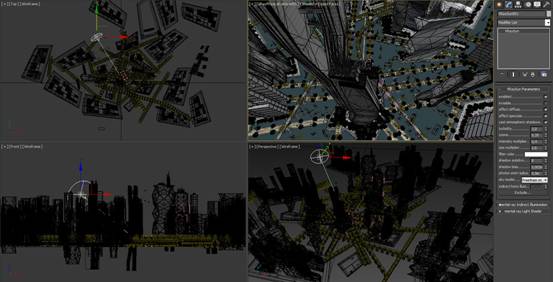

After getting an idea of the scene I wanted to create, I began by setting up the lighting using basic geometry to test compositions and values. For this scene, I used VRaySun and VRaySky. Again, the reference photos helped a lot in setting up the lighting and achieving the right angle and intensity.

參考和照明

如果我做一個arch-viz圖像或任何個人的工作，我從來都要有參考照片。 我認為這是任何項目的一個非常重要的部分，因?yàn)樗�可以幫助您設置和引導照明，并在應用最終調整時提供了良好的托盤參考。

一般來說，從頭開始，我的腦海里形成了一定的相機角度和心情，但這并不意味著我不會在剩下的過程中進行任何實驗！

在這種情況下，我知道我想創建一個空中拍攝，我心中有一定的想法，所以我只是開始在網上掃描照片。

在了解了我想要?jiǎng)?chuàng)建的場景之后，我開始使用基本幾何設計照明來測試構圖和值。 對于這個場景，我用了VRaySun和VRaySky。 再次，參考照片幫助建立照明并實現正確的角度和強度。

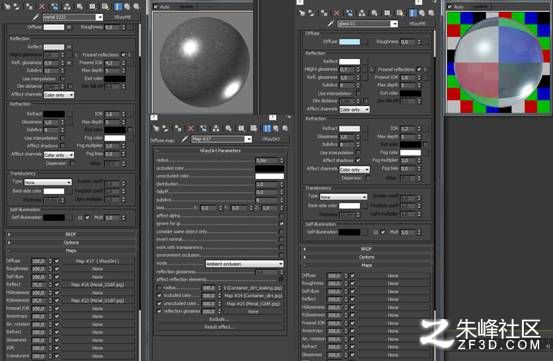

Materials

I didn't spend too much time on this stage because everything was going to be glass and metal. I used really simple, generalized materials because I realized this would give me much more freedom to take the materials in different directions during the post-production stage.

材料

我沒有在這個舞臺上度過太多的時間，因?yàn)橐磺卸紝⑹遣ＡШ徒饘佟?我使用了非常簡單的廣義材料，因?yàn)槲乙庾R(shí)到在后期制作階段，這樣可以讓我更多的自由在不同的方向拍攝材料。

Modeling one building

In the first stage of the modeling process, I used simple geometry (like boxes) which defined the location and the scale of the buildings. Honestly, I didn't think too much about the design, and so its refinement was achieved in a somewhat random way. Of course the initial idea of ?Dioptase' gave me some direction. Dioptase is a bluish-green translucent mineral and these features affected the whole design.

For the modeling, I used only the basic poly-modeling tools like Bevel, Extrude and Connect. First, I modeled a segment of the main building and simply cloned and rotated it, with some alterations here and there, until the complete skyscraper emerged.

建模一座建筑

在建模過程的第一階段，我使用了簡單的幾何（如框），它定義了建筑物的位置和尺度。 老實說，我對設計沒有太多的想法，所以它的改進是以一種隨機的方式實現的。 當然，Dioptase的初始想法給了我一些方向。 透明素是藍綠色半透明礦物，這些特征影響整個設計。

對于建模，我僅使用基本的多建模工具，如斜角，拉伸和連接。 首先，我建立了一個主樓的一部分，簡單地克隆并旋轉它，在這里和那里進行一些改動，直到完整的摩天大樓出現。

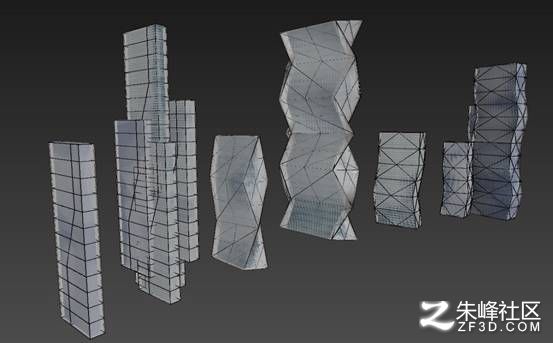

More skyscrapers

I used the same method to create the other skyscrapers.

更多的摩天大樓

我使用相同的方法來創建其他摩天大樓。

Smaller elements

Here you can see some other small Lego-type elements like roads and objects floating in the water.

On the X-shaped feature in this scene, you can see some small extruded polygons. I made these with a plug-in called Greeble. This is an awesome old-school plug-in and it's so much fun to use.

較小的元素

在這里，您可以看到一些其他小的樂高型元素，如道路和物體漂浮在水中。

在這個場景的X形特征上，你可以看到一些小的擠壓多邊形。 我用一個名叫Greeble的插件做了這些。 這是一個非常棒的老式插件，使用起來非常有趣。

Trees and people

When I finished building up the towers and roads, I scattered some generic trees from one of the Evermotion collections, and a few low poly people around the buildings. As it turns out they are barely visible and are only seen if you zoom in.

樹木和人

當我建成塔樓和道路時，我分散了Evermotion系列之一的一些普通樹，還有一些建筑物周?chē)�的低聚物�?事實證明，它們幾乎不可見，只有放大時才能看到。

Render setup

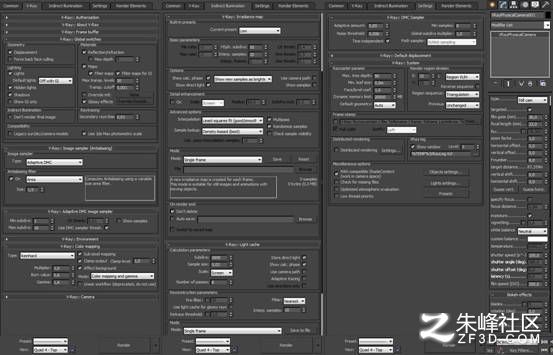

These are the render settings I used for this image ? it's pretty basic as you can see. After a 4-hour render, I had the base for the post-processing.

渲染設置

這些是我用于此圖像的渲染設置， 它是非�；�本的，你可以看到。 經過4小時的渲染后，我有后臺處理的基礎。

Checking the image

This is one of the most important parts where life and personality is added to the image. I deliberately didn`t mention this before, but halfway through the 3D setup I did a quick sketch in Photoshop to check that it was going to look as I had envisioned. This small sketch then became a good reference as I entered into the Photoshop stage.

檢查圖像

這是在圖像中添加生命和個性的最重要的部分之一。 我以前沒有提到這個，但是通過3D設置的中途，我在Photoshop中做了一個快速草圖來檢查它是否會像我預想的那樣看起來。 當我進入Photoshop階段，這個小草圖就成了一個很好的參考。

Post-production

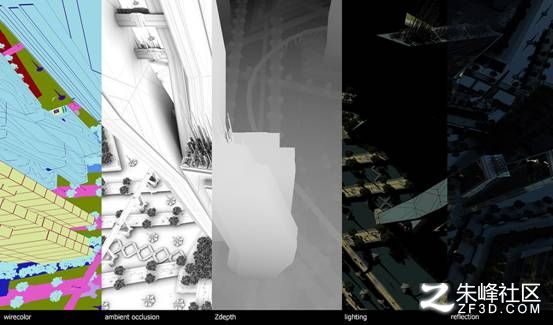

In Photoshop, the render elements seen below were imported.

后期制作

在Photoshop中，導入了以下所示的渲染元素。

Final image

最終形象
