Unity組件：Network View 網絡視圖

Network Views are the gateway to creating networked multiplayer games in Unity. They are simple to use, but they are extremely powerful. For this reason, it is recommended that you understand the fundamental concepts behind networking before you start experimenting with Network Views. You can learn and discover the fundamental concepts in the Network Reference Guide.

網絡視圖是在Unity中創建網絡多人游戲的重要一步。易于使用，而且非常強大。在你開始練習使用網絡視圖之前你應該更多了解網絡背后的基本概念。你能通過Network Reference Guide學到這些知識。

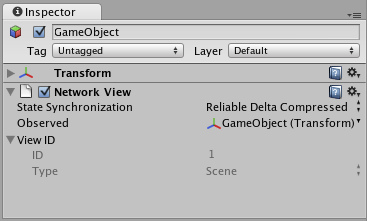

The Network View Inspector

In order to use any networking capabilities, including State Synchronization or Remote Procedure Calls, your GameObject must have a Network View attached.

為了使用包括狀態同步或者遠程過程調用等網絡功能，首先你必須創建一個綁定了網絡視圖組件的游戲?qū)ο蟆?/p>

Properties 屬性

• State Synchronization
  狀態同步
  The type of State Synchronization used by this Network View
  通過網絡視圖生效的狀態同步的類型
•     Off 關閉
  No State Synchronization will be used. This is the best option if you only want to send RPCs
  如果你只使用RPCs最好關閉狀態同步功能。
•     Reliable Delta Compressed
      延遲的使用壓縮的可靠性
  The difference between the last state and the current state will be sent, if nothing has changed nothing will be sent. This mode is ordered. In the case of packet loss, the lost packet is re-sent automatically
  發生變化的狀態會被通過網絡傳遞，如果沒有變化，沒有傳遞。這種模式是次序化得，因此，如果有包丟失，丟失的包會自動重傳。
•     Unreliable 不可靠的
  The complete state will be sent. This uses more bandwidth, but the impact of packet loss is minimized
  完整的傳遞所有狀態。這會導致更多帶寬被占用，但因為丟包而導致的影響會降到最低。
• Observed
  被觀察的對象
  The Component data that will be sent across the network
  會通過網絡進行同步的組件數據。
• View ID 視圖編號
  The unique identifier for this Network View. These values are read-only in the Inspector
  網絡視圖的唯一編號，這個值是只讀的。
•     Scene ID 場景編號
  The number id of the Network View in this particular scene
  在當前視圖里的網絡視圖的數字編號。
•     Type 類型
  Either saved to the Scene or Allocated at runtime
  這個選項將決定是在視圖中預先創建或是實時創建。

Details 細節

When you add a Network View to a GameObject, you must decide two things

當你添加了一個網絡視圖到游戲?qū)ο螅�你必須完成兩個步驟。

1. What kind of data you want the Network View to send
   你希望通過網絡視圖發送何種數據
2. How you want to send that data
   你希望以何種方式發送這些數據

Choosing data to send 選擇數據來發送

The Observed property of the Network View can contain a single Component. This can be a Transform, an Animation, a RigidBody, or a script. Whatever the Observed Component is, data about it will be sent across the network. You can select a Component from the drop-down, or you can drag any Component header directly to the variable. If you are not directly sending data, just using RPC calls, then you can turn off synchronization (no data directly sent) and nothing needs to be set as the Observed property. RPC calls just need a single network view present so you don't need to add a view specifically for RPC if a view is already present.

網絡視圖的觀察者屬性用來指定單個組件�？梢允且粋�變換、一個動畫、或是一個剛體、或者一個腳本�？傊�，觀察者組件是將會通過網絡發送的數據。你可以通過下拉菜單選擇的一個組件，或者你直接拖動某個組件到該網絡視圖的觀察者屬性為其賦值。如果你不直接發送數據，只是使用RPC調用，那你可以關閉同步（沒有數據會被直接發送）并且設置觀察者屬性為空。RPC調用只需要有一個網絡視圖存在，因此如果有一個視圖已經存在你不需要再添加一個特殊的視圖。

How to send the data 如何發送數據

You have 2 options to send the data of the Observed Component: State Synchronization and Remote Procedure Calls.

你有兩種發送數據觀察者組件數據的選擇：狀態同步和遠程過程調用。

To use State Synchronization, set State Synchronization of the Network View to Reliable Delta Compressed or Unreliable. The data of the Observed Component will now be sent across the network automatically.

當設置網絡視圖的狀態同步為可靠的延遲的加密的模式或者不可靠的模式。觀察者屬性所關聯的數據會自動通過網絡發送。

Reliable Delta Compressed is ordered. Packets are always received in the order they were sent. If a packet is dropped, that packet will be re-sent. All later packets are queued up until the earlier packet is received. Only the difference between the last transmissions values and the current values are sent and nothing is sent if there is no difference.

RDC是有序的。包總是以他們發送的次序被接收。如果包丟失了，包會被重發。后續的所有包會被緩存起來直到丟失的包被接收到。只有最后傳輸?shù)闹岛彤?dāng)前的值之間發生改變的值會被傳送。如果沒有改變沒有值會被傳送。

If it is observing a Script, you must explicitly Serialize data within the script. You do this within the OnSerializeNetworkView() function.

如果被觀察的是一個腳本組件，你必須明確的指出和腳本相關聯的數據，你可以通過在OnSerializeNetworkView()中返回數據來實現。

function OnSerializeNetworkView (stream : BitStream, info : NetworkMessageInfo) {
	var horizontalInput : float = Input.GetAxis ("Horizontal");
	stream.Serialize (horizontalInput);
}

The above function always writes (an update from the stream) into horizontalInput, when receiving an update and reads from the variable writing into the stream otherwise. If you want to do different things when receiving updates or sending you can use the isWriting attribute of the BitStream class.

上述函數中的代碼總是寫入（或者是從流中提取）到horizontalInput,為了接收到一個更新或是讀出一個正寫入流中的變量。如果你想在接收更新或者發送時能做些別的事情，你能通過使用BitStream上的isWriting屬性來實現。

function OnSerializeNetworkView (stream : BitStream, info : NetworkMessageInfo) {
	var horizontalInput : float = 0.0;
	if (stream.isWriting) {
		// Sending
		horizontalInput = Input.GetAxis ("Horizontal");
		stream.Serialize (horizontalInput);
	} else {

		// Receiving
		stream.Serialize (horizontalInput);
		// ... do something meaningful with the received variable
	}
}

OnSerializeNetworkView is called according to the sendRate specified in the network manager project settings. By default this is 15 times per second.

OnSerializeNetworkView根據在網絡管理器工程設定里的sendRate(發送速率)進行調用。默認的是每秒鐘調用15次。

If you want to use Remote Procedure Calls in your script all you need is a NetworkView component present in the same GameObject the script is attached to. The NetworkView can be used for something else, or in case it's only used for sending RPCs it can have no script observed and state synchronization turned off. The function which is to be callable from the network must have the @RPC attribute. Now, from any script attached to the same GameObject, you call networkView.RPC() to execute the Remote Procedure Call.

如果你想在腳本中使用RPC你所需要做的是在腳本組件所在的游戲?qū)ο笊辖壎ㄒ粋�網絡視圖組件對象。網絡組件還能被用作其他用途，或者只用于發送RPC， 網絡組件上不綁定任何腳本組件并且狀態同步選項被關閉�？梢酝ㄟ^網絡組件進行訪問的RPC函數必須具備@RPC屬性�，F(xiàn)在，從任何綁定在游戲?qū)ο蟮哪_本組件中都可以通過調用networkView.RPC()來執行遠程調用操作。

var playerBullet : GameObject;

function Update () {
	if (Input.GetButtonDown ("Fire1")) {
		networkView.RPC ("PlayerFire", RPCMode.All);
	}
}

@RPC
function PlayerFire () {
	Instantiate (playerBullet, playerBullet.transform.position, playerBullet.transform.rotation);
}

RPCs are transmitted reliably and ordered. For more information about RPCs, see the RPC Details page.

RPC被可靠的傳輸。在RPC Details可以獲得更多RPC的詳細細節。

Hints 提示

• Read through the Network Reference Guide if you're still unclear about how to use Network Views
  通過閱讀Network Reference Guide，如果你還清楚如何使用網絡視圖。
• State Synchronization does not need to be disabled to use Remote Procedure Calls
  使用RPC不需要關閉狀態同步
• If you have more than one Network View and want to call an RPC on a specific one, use GetComponents(NetworkView)[i].RPC().
  如果你想通過在多個網絡視圖中選擇一個來完成RPC時，請使用GetComponents(NetworkView)[i].RPC()。
